ADC14161, Low-Distortion/ Self-Calibrating 14-Bit/ 2.5 MSPS/ 390 mW A/D Converter

ADC14161 Low-Distortion, Self-Calibrating 14-Bit, 2.5 MSPS, 390 mW A/D Converter January 2000 ADC14161 Low-Distortion, Self-Calibrating 14-Bit, 2.5 .
The ADC14161 is a self-calibrating 14-bit, 2.

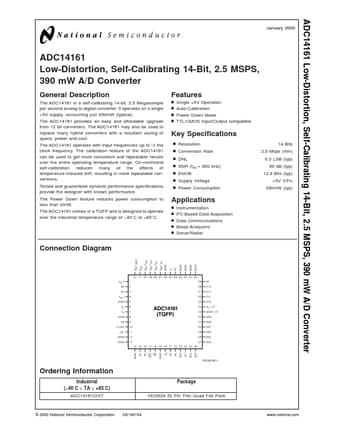

datasheet Preview Page 1 from Datasheet4u.com

ADC14161_NationalSemiconductor.pdf

ADC14161 Datasheet Preview — Preview of ADC14161 PDF

Datasheet Details

Part number:

ADC14161

Manufacturer:

National Semiconductor

File Size:

471.93 KB

Description:

Low-Distortion/ Self-Calibrating 14-Bit/ 2.5 MSPS/ 390 mW A/D Converter

Features

* n n n n Single +5V Operation Auto-Calibration Power Down Mode TTL/CMOS Input/Output compatible Key Specifications n Resolution n Conversion Rate n DNL n SNR (fIN = 500 kHz) n ENOB n Supply Voltage n Power Consumption 14 Bits 2.5 Msps (min) 0.3 LSB (typ) 80 dB (typ) 12.8 Bits (typ) +5V ± 5% 390mW (t

Applications

* n n n n n Instrumentation PC-Based Data Acquisition Data Communications Blood Analyzers Sonar/Radar Connection Diagram DS100154-1 Ordering Information Industrial (
* 40˚C ≤ TA ≤ +85˚C) ADC14161CIVT Package VEG52A 52 Pin Thin Quad Flat Pack © 2000 National Semiconductor Corporation DS10015
