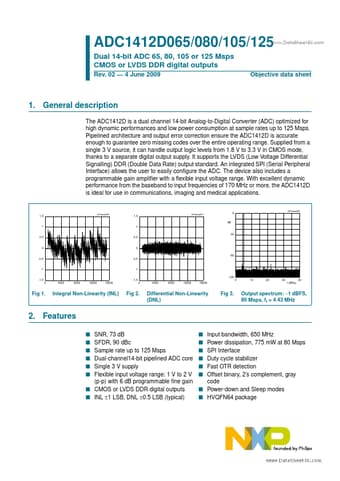

ADC1412D125 Dual 14-bit ADC

The ADC1412D is a dual channel 14-bit Analog-to-Digital Converter (ADC) optimized for high dynamic performances and low power consumption at sample rates up to 125 Msps. Pipelined architecture and output error correction ensure the ADC1412D is accurate enough to guarantee zero missing codes over the.

ADC1412D125 Features

* I I I I I I SNR, 73 dB SFDR, 90 dBc Sample rate up to 125 Msps Dual-channel14-bit pipelined ADC core Single 3 V supply Flexible input voltage range: 1 V to 2 V (p-p) with 6 dB programmable ﬁne gain I CMOS or LVDS DDR digital outputs I INL ±1 LSB, DNL ±0.5 LSB (typical) I I I I I I Input bandwidth, 6
