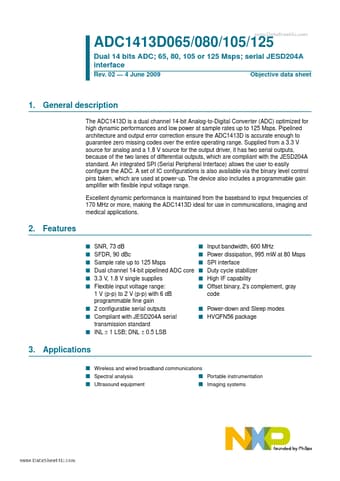

The ADC1413D is a dual channel 14-bit Analog-to-Digital Converter (ADC) optimized for high dynamic performances and low power at sample rates up to 125 Msps.
Pipelined architecture and output error correction ensure the ADC1413D is accurate enough to guarantee zero missing codes over the entire oper
ADC1413D125 Features
* I I I I I I SNR, 73 dB SFDR, 90 dBc Sample rate up to 125 Msps Dual channel 14-bit pipelined ADC core 3.3 V, 1.8 V single supplies Flexible input voltage range: 1 V (p-p) to 2 V (p-p) with 6 dB programmable fine gain I 2 configurable serial outputs I Compliant with JESD204A serial transmission standar
ADC1413D065_NXPSemiconductors.pdf
Datasheet Details
ADC1413D125, ADC1413D065
NXP ↗ Semiconductors
259.25 KB
Dual 14-bits adc.
This datasheet PDF includes multiple part numbers: ADC1413D125, ADC1413D065.
Please refer to the document for exact specifications by model.
