ISP1564

Hi-Speed USB PCI host Controller

ISP1564 Features

* I Complies with Universal Serial Bus Specification Rev. 2.0 I Complies with PCI Local Bus Specification Rev. 2.2 I Supports data transfer at high-speed (480 Mbit/s), full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s) I One Original USB OHCI core is compliant with Open Host Controller Interface Specifica

ISP1564 General Description

The ISP1564 is a Peripheral Component Interconnect (PCI)-based, single-chip Universal Serial Bus (USB) host controller. It integrates one Original USB Open Host Controller Interface (OHCI) core, one Hi-Speed USB Enhanced Host Controller Interface (EHCI) core, and two transceivers that are compliant .

ISP1564 Datasheet (602.25 KB)

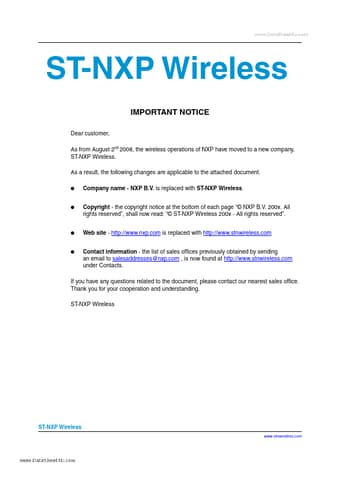

Preview of ISP1564 PDF

Datasheet Details

Part number:

ISP1564

Manufacturer:

NXP ↗ Semiconductors

File Size:

602.25 KB

Description:

Hi-speed usb pci host controller.
