PTN3300A

DVI/HDMI level shifter

PTN3300A Features

* supporting DVI and HDMI. It is identical to the PTN3300B except that the HPD_SOURCE_N output is the logic inverse function of input HPD_SINK, level shifted to 1.1 V. For a fully-featured HDMI/DVI level shifter function that supports active buffering of the DDC lines and HDMI dongle detect, the PTN33

PTN3300A General Description

The PTN3300A is a high-speed level shifter device which converts four lanes of low-swing AC-coupled differential input signals to DVI and HDMI compliant open-drain current-steering differential output signals, up to 2.25 Gbit/s per lane. Each of these lanes provides a level-shifting differential buf.

PTN3300A Datasheet (166.35 KB)

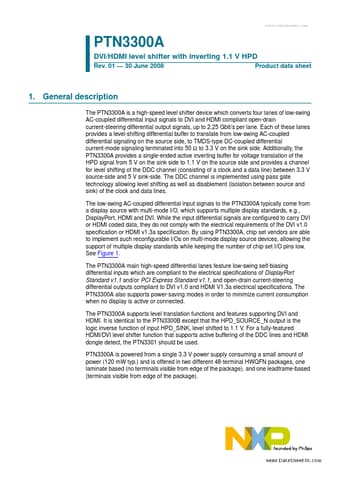

Preview of PTN3300A PDF

Datasheet Details

Part number:

PTN3300A

Manufacturer:

NXP ↗ Semiconductors

File Size:

166.35 KB

Description:

Dvi/hdmi level shifter.
www.DataSheet4U.com PTN3300A DVI/HDMI level shifter with inverting 1.1 V HPD Rev. 01

* 30 June 2008 Product data sheet 1. General descriptio.
