PTN3300B

DVI and HDMI level shifter

PTN3300B Features

* supporting both DVI and HDMI. A derivative, PTN3300A, is available that is identical to the PTN3300B except that the HPD_SOURCE_N output is the inverting function of input HPD_SINK, level shifted to 1.1 V. For a fully-featured HDMI/DVI level shifter function that supports active buffering of the DDC

PTN3300B General Description

The PTN3300B is a high-speed level shifter device which converts four lanes of low-swing AC-coupled differential input signals to DVI and HDMI compliant open-drain current-steering differential output signals, up to 2.25 Gbit/s per lane. Each of these lanes provides a level-shifting differential buf.

PTN3300B Datasheet (166.22 KB)

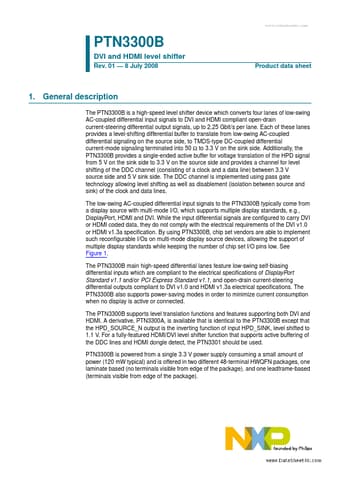

Preview of PTN3300B PDF

Datasheet Details

Part number:

PTN3300B

Manufacturer:

NXP ↗ Semiconductors

File Size:

166.22 KB

Description:

Dvi and hdmi level shifter.
