PTN3341

High speed differential line driver

PTN3341 Features

* s Meets or exceeds the requirements of ANSI TIA/EIA-644 Standard s Low-Voltage Differential Signaling with output voltage of 350 mV across a 50 Ω load or 700 mV across a 100 Ω load s 200 ps maximum channel-to-channel output skew s 600 ps typical output voltage rise and fall times s Driver at high im

PTN3341 General Description

The PTN3341 is a differential line driver that implements the electrical characteristics of Low-Voltage Differential Signaling (LVDS) that meets or exceeds the requirements of the ANSI TIA/EIA-644 Standard. LVDS is used to achieve higher data rates on commonly used media. LVDS overcomes the limitati.

PTN3341 Datasheet (275.32 KB)

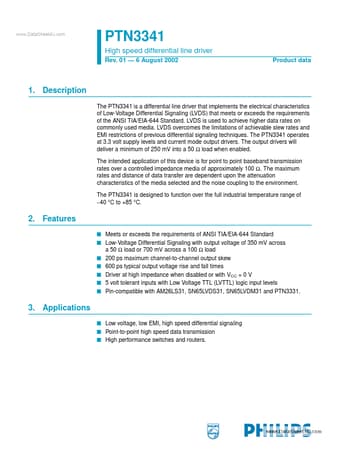

Preview of PTN3341 PDF

Datasheet Details

Part number:

PTN3341

Manufacturer:

NXP ↗ Semiconductors

File Size:

275.32 KB

Description:

High speed differential line driver.
