PTN3310

High-speed serial logic translators

NXP

PTN3310 Features

* Meets LVDS EIA-644 and PECL standards

* 2 pin-for-pin replacement input/output choices:

* LVDS in, PECL out (PTN3310)

* PECL in, LVDS out (PTN3311) Figure 1 shows the High-Speed Serial Logic Translator Device in a typical high speed optical module application. Fig

PTN3310 General Description

The High-Speed Serial Logic Translator provides a point solution that addresses the various interface logic requirements of Optical Transceiver Modules. The product offers a compact translation between LVDS and PECL high speed serial data lines. This provides the end users a simple way to mix or mat.

PTN3310 Datasheet (62.08 KB)

PTN3310 Datasheet Preview — Preview of PTN3310 PDF

Datasheet Details

Part number:

PTN3310

Manufacturer:

NXP ↗

File Size:

62.08 KB

Description:

High-speed serial logic translators.

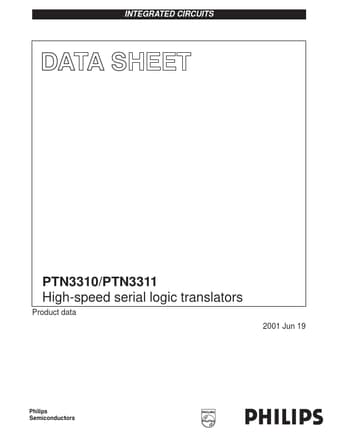

INTEGRATED CIRCUITS PTN3310/PTN3311 High-speed serial logic translators Product data 2001 Jun 19 Philips Semiconductors Philips Semiconductors Pro.
