AV16899DGG

2.5V/3.3V 18-bit latched transceiver with 16-bit parity generator/checker 3-State

AV16899DGG Features

* Symmetrical (A and B bus functions are identical)

* Selectable generate parity or ”feed-through” parity for A-to-B and B-to-A directions can generate or check parity. The parity bit can be fed-through with no change or the generated parity can be substituted with the SEL input. T

AV16899DGG General Description

The 74ALVT16899 has three principal modes of operation which are outlined below. All modes apply to both the A-to-B and B-to-A directions. Transparent latch, Generate parity, Check A and B bus parity: Bus A (B) communicates to Bus B (A), parity is generated and passed on to the B (A) Bus as BPAR (A.

AV16899DGG Datasheet (122.65 KB)

Rating: 1 (3 votes)
Preview of AV16899DGG PDF

Datasheet Details

Part number:

AV16899DGG

Manufacturer:

NXP ↗

File Size:

122.65 KB

Description:

2.5v/3.3v 18-bit latched transceiver with 16-bit parity generator/checker 3-state.

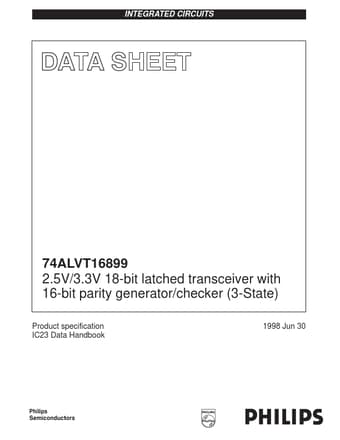

INTEGRATED CIRCUITS 74ALVT16899 2.5V/3.3V 18-bit latched transceiver with 16-bit parity generator/checker (3-State) Product specification IC23 Data H.
