ISP1362 - Single-chip Universal Serial Bus On-The-Go Controller

NXP

📥 Download Datasheet

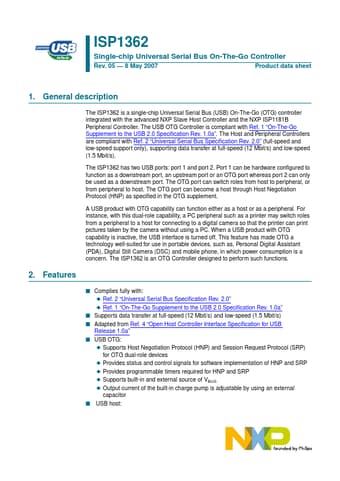

ISP1362 Datasheet Preview — Preview of ISP1362 PDF

Datasheet Details

Part number: ISP1362
Manufacturer: NXP ↗
File Size: 598.94 KB
Datasheet: ISP1362-NXP.pdf
Description: Single-chip Universal Serial Bus On-The-Go Controller

ISP1362 Product details

Description

The ISP1362 is a single-chip Universal Serial Bus (USB) On-The-Go (OTG) controller integrated with the advanced NXP Slave Host Controller and the NXP ISP1181B Peripheral Controller.

Features

I Complies fully with: N Ref. 2 “Universal Serial Bus Speciﬁcation Rev. 2.0” N Ref. 1 “On-The-Go Supplement to the USB 2.0 Speciﬁcation Rev. 1.0a” I Supports data transfer at full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s) I Adapted from Ref. 4 “Open Host Controller Interface Speciﬁcation for USB Release 1.0a” I USB OTG: N Supports Host Negotiation Protocol (HNP) and Session Request Protocol (SRP) for OTG dual-role devices N Provides status and control signals for software implementation of HN.
