MCXA145, MCXA156 - 48MHz or 96MHz 32-bit MCU

NXP

📥 Download Datasheet

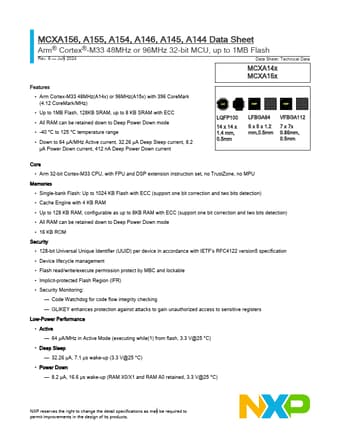

MCXA145 Datasheet Preview — This datasheet PDF includes multiple part numbers: MCXA145, MCXA156. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MCXA145, MCXA156
Manufacturer	NXP ↗
File Size	1.13 MB
Description	48MHz or 96MHz 32-bit MCU
Datasheet	MCXA156-NXP.pdf
Note	This datasheet PDF includes multiple part numbers: MCXA145, MCXA156. Please refer to the document for exact specifications by model.

MCXA145 Product details

Features

Arm Cortex-M33 48MHz(A14x) or 96MHz(A15x) with 396 CoreMark (4.12 CoreMark/MHz).
Up to 1MB Flash, 128KB SRAM, up to 8 KB SRAM with ECC.
All RAM can be retained down to Deep Power Down mode.
-40 °C to 125 °C temperature range.
Down to 64 μA/MHz Active current, 32.26 μA Deep Sleep current, 8.2 μA Power Down current, 412 nA Deep Power Down current LQFP100 14 x 14 x 1.4 mm, 0.5mm LFBGA64 5 x 5 x 1.2 mm,0.5mm VFBGA112 7 x 7x 0.86mm, 0.5mm Core.
