MCXA146, MCXA156, 48MHz or 96MHz 32-bit MCU

MCXA156, A155, A154, A146, A145, A144 Data Sheet Arm® Cortex®-M33 48MHz or 96MHz 32-bit MCU, up to 1MB Flash Rev.5 * July 2024 Data Sheet:.

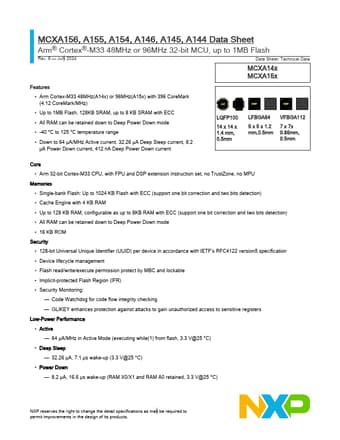

datasheet Preview Page 1 from Datasheet4u.com

MCXA156-NXP.pdf

MCXA146 Datasheet Preview — This datasheet PDF includes multiple part numbers: MCXA146, MCXA156. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MCXA146, MCXA156

Manufacturer:

NXP ↗

File Size:

1.13 MB

Description:

48MHz or 96MHz 32-bit MCU

Note:

This datasheet PDF includes multiple part numbers: MCXA146, MCXA156.
Please refer to the document for exact specifications by model.

Features

* Arm Cortex-M33 48MHz(A14x) or 96MHz(A15x) with 396 CoreMark (4.12 CoreMark/MHz)
* Up to 1MB Flash, 128KB SRAM, up to 8 KB SRAM with ECC
* All RAM can be retained down to Deep Power Down mode
* -40 °C to 125 °C temperature range
* Down to 64 μA/MHz Active cu

Applications

* Industrial
* Energy Storage and Management System
* Smart Metering
* Factory Automation
* Industrial HMI
* Mobile Robotics Ecosystem
* Motion Control and Robotics
* Motor Drives
* Brushless DC Motor (BLDC) Control
* Permanent Ma
