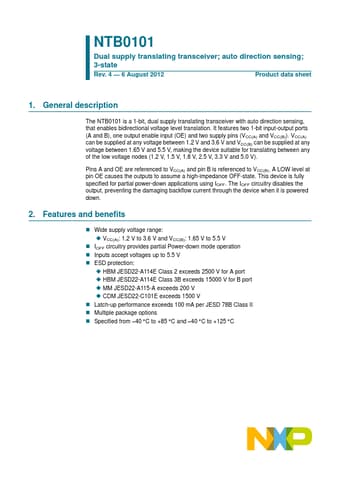

NTB0101 Datasheet Preview — Preview of NTB0101 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NTB0101
Manufacturer	NXP ↗
File Size	183.15 KB
Description	Dual supply translating transceiver
Datasheet	NTB0101-NXP.pdf

NTB0101 Product details

Description

The NTB0101 is a 1-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation.

Features

Wide supply voltage range:.
VCC(A): 1.2 V to 3.6 V and VCC(B): 1.65 V to 5.5 V.
IOFF circuitry provides partial Power-down mode operation.
Inputs accept voltages up to 5.5 V.
ESD protection:.
HBM JESD22-A114E Class 2 exceeds 2500 V for A port.
HBM JESD22-A114E Class 3B exceeds 15000 V for B port.
MM JESD22-A115-A exceeds 200 V.
CDM JESD22-C101E exceeds 1500 V.
Latch-up performance exceeds 100 mA per JESD 78B Class II.
Multiple package optio.
