NTB011N15MC, N-Channel MOSFET

MOSFET - N-Channel Shielded Gate PowerTrench[ 150 V, 10.9 mW, 75.4 A NTB011N15MC .

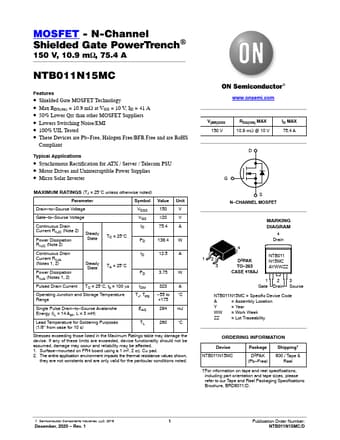

datasheet Preview Page 1 from Datasheet4u.com

NTB011N15MC-ONSemiconductor.pdf

NTB011N15MC Datasheet Preview — Preview of NTB011N15MC PDF

Datasheet Details

Part number:

NTB011N15MC

Manufacturer:

ON Semiconductor ↗

File Size:

152.43 KB

Description:

N-Channel MOSFET

Features

* Shielded Gate MOSFET Technology
* Max RDS(on) = 10.9 mW at VGS = 10 V, ID = 41 A
* 50% Lower Qrr than other MOSFET Suppliers
* Lowers Switching Noise/EMI
* 100% UIL Tested
* These Devices are Pb
* Free, Halogen Free/BFR Free and are RoHS Compli

Applications

* Synchronous Rectification for ATX / Server / Telecom PSU
* Motor Drives and Uninterruptible Power Supplies
* Micro Solar Inverter MAXIMUM RATINGS (TJ = 25°C unless otherwise noted) Parameter Symbol Value Unit Drain
* to
* Source Voltage VDSS 150 V Gate
