NTB0102-Q100 - Dual supply translating transceiver

NXP

📥 Download Datasheet

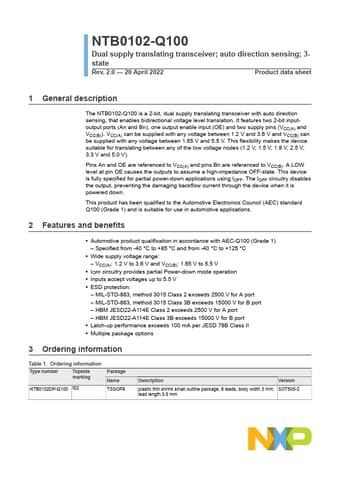

NTB0102-Q100 Datasheet Preview — Preview of NTB0102-Q100 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NTB0102-Q100
Manufacturer	NXP ↗
File Size	323.29 KB
Description	Dual supply translating transceiver
Datasheet	NTB0102-Q100-NXP.pdf

NTB0102-Q100 Product details

Description

The NTB0102-Q100 is a 2-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation.

Features

Automotive product qualification in accordance with AEC-Q100 (Grade 1).
Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
Wide supply voltage range:.
VCC(A): 1.2 V to 3.6 V and VCC(B): 1.65 V to 5.5 V.
IOFF circuitry provides partial Power-down mode operation.
Inputs accept voltages up to 5.5 V.
ESD protection:.
MIL-STD-883, method 3015 Class 2 exceeds 2500 V for A port.
MIL-STD-883, method 3015 Class 3B.
