NTB0101A

Auto direction sensing dual supply

NTB0101A Features

* Wide supply voltage range:

* VCC(A): 1.2 V to 3.6 V and VCC(B): 1.65 V to 5.5 V

* IOFF circuitry provides partial power-down mode operation

* Inputs accept voltages up to 5.5 V

* ESD protection:

* HBM JESD22-A114E Class 2 exceeds 2500 V for port A

* HBM JESD22-A114E Cla

NTB0101A General Description

The NTB0101A is a 1-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation. It consists of two 1-bit I/O ports (A and B), one output enable input (OE) and two supply pins (VCC(A) and VCC(B)). VCC(A) can be supplied at any voltage be.

NTB0101A Datasheet (195.66 KB)

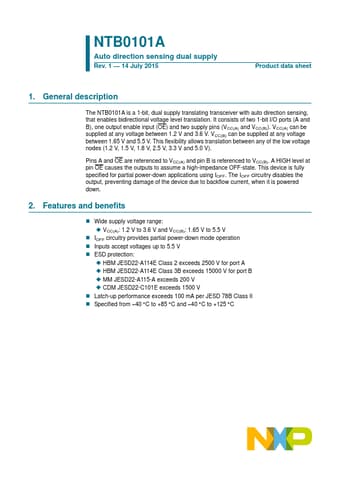

Preview of NTB0101A PDF

Datasheet Details

Part number:

NTB0101A

Manufacturer:

NXP ↗

File Size:

195.66 KB

Description:

Auto direction sensing dual supply.
