PBYR2045CTX Datasheet - NXP

PBYR2045CTX Rectifier diodes Schottky barrier

Dual, common cathode schottky rectifier diodes in a plastic envelope with electrically isolated mounting tab. Intended for use as output rectifiers in low voltage, high frequency switched mode power supplies. The PBYR2045CTF series is supplied in the SOT186 package. The PBYR2045CTX series is supplie.

PBYR2045CTX Features

* Low forward volt drop

* Fast switching

* Reverse surge capability

* High thermal cycling performance

* Isolated mounting tab PBYR2045CTF, PBYR2045CTX series SYMBOL QUICK REFERENCE DATA VR = 40 V/ 45 V IO(AV) = 20 A VF ≤ 0.57V a1 1 k 2 a2 3 GENERAL DESC

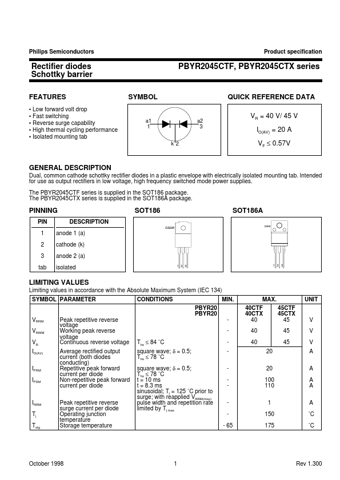

PBYR2045CTX_PhilipsSemiconductors.pdf
