PHDMI2F4 - ESD protection

PHDMI2F4 Description

XSON10 PHDMI2F4 ESD protection for ultra high-speed interfaces Rev.1 * 31 July 2014 Product data sheet 1.Product profile 1.1 General de.
The device is designed to protect high-speed interfaces such as Transition Minimized Differential Signaling (TDMS) lines of High-Definition Multimedia.

PHDMI2F4 Features

* System ESD protection for HDMI, standard 2.0 and lower.
* All signal lines with integrated rail-to-rail clamping diodes for downstream ESD protection of 10 kV exceeding IEC 61000-4-2, level 4
* Matched 0.5 mm trace spacing
* Signal lines with  0.05 pF matching capacitance between

PHDMI2F4 Applications

* The device is designed for high-speed receiver and transmitter port protection:
* TVs and monitors
* DVD recorders and players
* Notebooks, main board graphic cards and ports
* Set-top boxes and game consoles NXP Semiconductors PHDMI2F4 ESD protection for ultra high-speed interface

📥 Download Datasheet

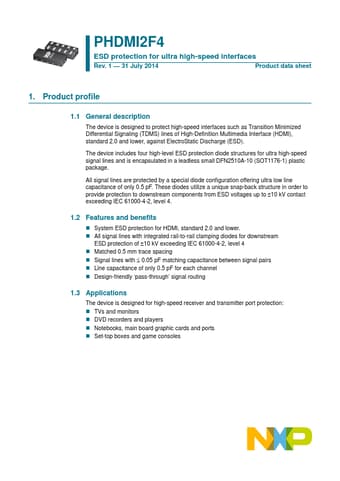

Preview of PHDMI2F4 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PHDMI2F4
Manufacturer
NXP ↗
File Size
0.97 MB
Datasheet
PHDMI2F4-NXP.pdf
Description
ESD protection
