PHDMI2FR4

ESD protection

nexperia

PHDMI2FR4 Features

* System-level ESD protection for HDMI and DisplayPort

* Line capacitance of only 0.29 pF for each channel

* Outstanding system protection: extremely deep snap-back combined with dynamic resistance of only 0.27 Ω

* All signal lines with integrated rail-to-rail clampin

PHDMI2FR4 General Description

The device is designed to protect high-speed video interfaces such as High-Definition Multimedia Interface (HDMI) and DisplayPort interfaces against ElectroStatic Discharge (ESD). The device includes four high-level ESD protection diode structures. They protect sensitive transmitters and receivers f.

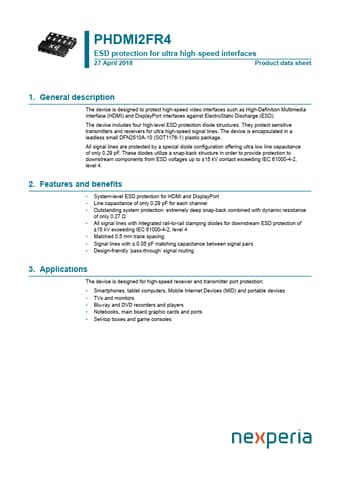

PHDMI2FR4 Datasheet (1.03 MB)
