PHM15NQ20T - TrenchMOS standard level FET

PHM15NQ20T Description

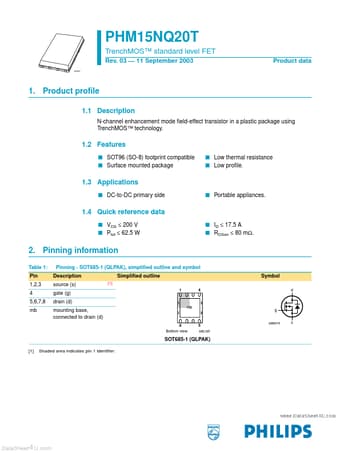

www.DataSheet4U.com PHM15NQ20T TrenchMOS™ standard level FET Rev.03 * 11 September 2003 M3D879 Product data 1.Product profile 1.1 Descript.
N-channel enhancement mode field-effect transistor in a plastic package using TrenchMOS™ technology.

PHM15NQ20T Applications

* s DC-to-DC primary side s Portable appliances. www. DataSHeet4U. com Symbol 1 4 d g s MBB076 1.4 Quick reference data s VDS ≤ 200 V s Ptot ≤ 62.5 W s ID ≤ 17.5 A s RDSon ≤ 80 mΩ. 2. Pinning information Table 1: Pin 1,2,3 4 5,6,7,8 mb Pinning - SOT685-1 (QLPAK), simplified outline and symbol Descripti
