PHM003

30w 450-470 MHZ Power RF Amplifiers

PHM003 General Description

The PHM003 is a high gain high power amplifier design for the Tetra frequency range. It has two stages and uses the latest Ldmos technology transistors. The amplifier has very high gain and high efficiency and has a IP3 of 50 dBm Abosolute Maximum Ratings ( T = 25 C) Parameter DC supply Voltage Inp.

PHM003 Datasheet (73.29 KB)

Preview of PHM003 PDF

Datasheet Details

Part number:

PHM003

Manufacturer:

Polyfet RF Devices

File Size:

73.29 KB

Description:

30w 450-470 mhz power rf amplifiers.
polyfet rf devices Power RF Amplifiers Power = 30 Watts 450 to 470 Mhz Vdd =12.5 Volts Bandwidth = Gain = 25 dB www.DataSheet4U.com PHM003 50 ohms I.

📁 Related Datasheet

PHM008 The PHM008 is a dual stage amplifier specifically designed for Land Mobile (Polyfet RF Devices)

PHM017 Power RF Amplifiers (Polyfet RF Devices)

PHM020 Power RF Amplifiers (Polyfet RF Devices)

PHM021 Power RF Amplifiers (Polyfet RF Devices)

PHM022 Power RF Amplifiers (Polyfet RF Devices)

PHM12NQ20T TrenchMOS standard level FET (NXP)

PHM15NQ20T TrenchMOS standard level FET (NXP)

PHM1880-15 Wireless Power Module/ 15W 1805-1880 MHz (Tyco Electronics)

PHM18NQ15T TrenchMOS standard level FET (NXP)

PHM21NQ15T TrenchMOS standard level FET (NXP)

TAGS

PHM003 30w 450-470 MHZ Power Amplifiers Polyfet RF Devices

Image Gallery

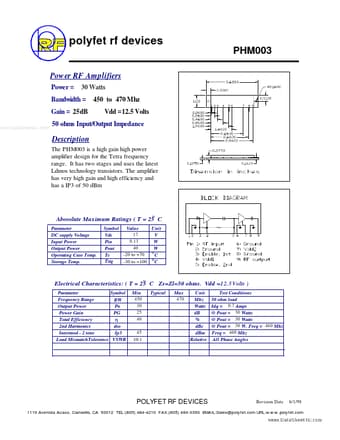

PHM003 Datasheet Preview Page 2
