PHM020 - Power RF Amplifiers

PHM020 Description

www.DataSheet4U.com polyfet rf devices Power RF Amplifiers Power = 5.0 Watts Bandwidth = 225 to 400 Mhz Gain = 25.0 dB Vdd = 28.0 Volts 50 ohms Input.
The PHM020 is a 5 Watt FM / 1 Watt AM amplifier module covering a bandwidth of 225-400 Mhz.

PHM020 Applications

* External Gate bias pin option is available upon request. Absolute Maximum Ratings (T=25 oC) Parameter DC supply Voltage 1 DC supply Voltage 2 AGC Voltage Input Power Output Power Operating Case Temp. Storage Temperature Symbol VDD1 VDD2 VAGC Pin Pout Tc Tstg Value 32.0 0.02 10.0 -20 to +85 -30 t

📥 Download Datasheet

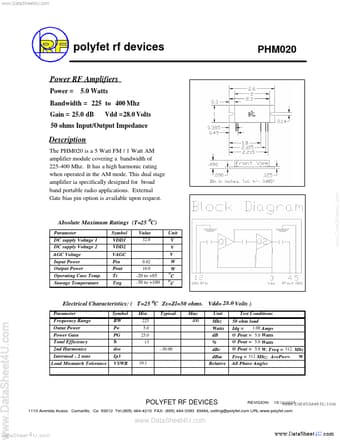

Preview of PHM020 PDF
datasheet Preview Page 2

Datasheet Details

Part number
PHM020
Manufacturer
Polyfet RF Devices
File Size
207.45 KB
Datasheet
PHM020_PolyfetRFDevices.pdf
Description
Power RF Amplifiers
