PHM022 Datasheet, Amplifiers, Polyfet RF Devices

PDF File Details

Part number:

PHM022

Manufacturer:

Polyfet RF Devices

File Size:

201.50kb

Download:

📄 Datasheet

Description:

Power rf amplifiers. The PHM022 is a 12 Watt FM / 4 Watt AM amplifier module covering a bandwidth of 300-512 Mhz. It has a high IP3 rating when operated i

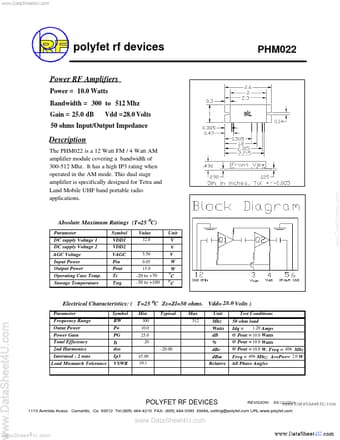

Datasheet Preview: PHM022 📥 Download PDF (201.50kb)
Page 2 of PHM022

PHM022 Application

  • Applications Absolute Maximum Ratings (T=25 oC) Parameter DC supply Voltage 1 DC supply Voltage 2 AGC Voltage Input Power Output Power Operating C
