PHM008 - The PHM008 is a dual stage amplifier specifically designed for Land Mobile

PHM008 Description

www.DataSheet4U.com polyfet rf devices Power RF Amplifiers Power = 3 Watts Bandwidth = 400 to 520 Mhz Gain = 24 dB Vdd = 7.5 Volts PHM008 50 ohms I.
The PHM008 s a dual stage amplifier specifically designed for Land Mobile UHF band portable radio applications.

PHM008 Applications

* Absolute Maximum Ratings ( T = 25 C) Parameter DC supply Voltage 1 DC supply Voltage 2 Input Power Output Power Operating Case Temp. Storage Temp. Symbol Value Unit 12 V VDD1 V VDD2 0.5 W Pin 5 W Pout o -20 to +70 C Tc -30 to +100 o C Tstg o o Electrical Characteristics: ( T = 25 C Zs=Zl=50 ohms

📥 Download Datasheet

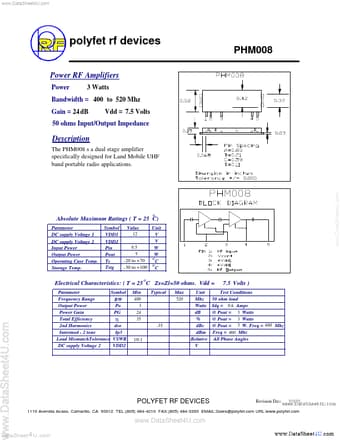

Preview of PHM008 PDF
datasheet Preview Page 2

Datasheet Details

Part number
PHM008
Manufacturer
Polyfet RF Devices
File Size
197.35 KB
Datasheet
PHM008_PolyfetRFDevices.pdf
Description
The PHM008 is a dual stage amplifier specifically designed for Land Mobile
