PHM017 - Power RF Amplifiers

PHM017 Description

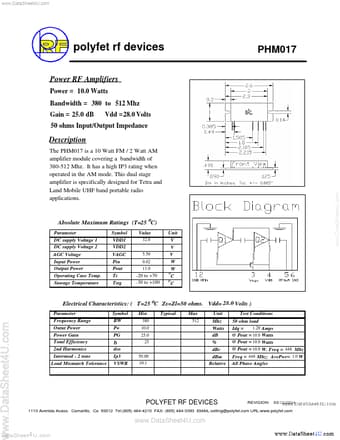

www.DataSheet4U.com polyfet rf devices Power RF Amplifiers Power = 10.0 Watts Bandwidth = 380 to 512 Mhz Gain = 25.0 dB Vdd = 28.0 Volts 50 ohms Inpu.
The PHM017 is a 10 Watt FM / 2 Watt AM amplifier module covering a bandwidth of 380-512 Mhz.

PHM017 Applications

* Absolute Maximum Ratings (T=25 oC) Parameter DC supply Voltage 1 DC supply Voltage 2 AGC Voltage Input Power Output Power Operating Case Temp. Storage Temperature Symbol VDD1 VDD2 VAGC Pin Pout Tc Tstg Value 32.0 5.50 0.02 13.0 -20 to +70 -30 to +100 Unit V V V W W o C o C Electrical Characteri

📥 Download Datasheet

Preview of PHM017 PDF
datasheet Preview Page 2

Datasheet Details

Part number
PHM017
Manufacturer
Polyfet RF Devices
File Size
203.72 KB
Datasheet
PHM017_PolyfetRFDevices.pdf
Description
Power RF Amplifiers
