PN5180A0ETC1QL

High-performance multi-protocol full NFC frontend

PN5180A0ETC1QL Features

* Transmitter current up to 250 mA

* Dynamic Power Control (DPC) for optimized RF performance, even under detuned antenna conditions

* Adaptive Waveform Control (AWC) automatically adjusts the transmitter modulation for RF compliancy

* Adaptive Receiver Control (ARC)

PN5180A0ETC1QL General Description

PN5180, the best full NFC frontend on the market. As a highly integrated high performance full NFC Forum-compliant frontend IC for contactless communication at 13.56 MHz, this frontend IC utilizes an outstanding modulation and demodulation concept completely integrated for different kinds of contact.

PN5180A0ETC1QL Datasheet (1.02 MB)

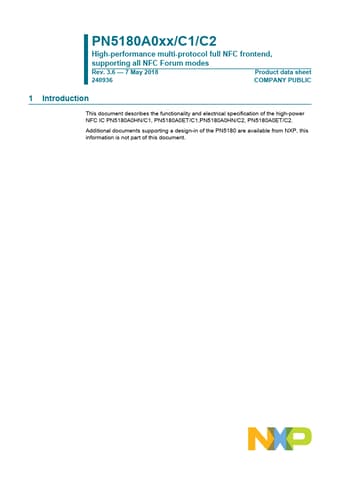

Preview of PN5180A0ETC1QL PDF

Datasheet Details

Part number:

PN5180A0ETC1QL

Manufacturer:

NXP ↗

File Size:

1.02 MB

Description:

High-performance multi-protocol full nfc frontend.
PN5180A0xx/C1/C2 High-performance multi-protocol full NFC frontend, supporting all NFC Forum modes Rev. 3.6

* 7 May 2018 Product data shee.
