PN5180, the best full NFC frontend on the market.
As a highly integrated high performance full NFC Forum-compliant frontend IC for contactless communication at 13.56 MHz, this frontend IC utilizes an outstanding modulation and demodulation concept completely integrated for different kinds of contact

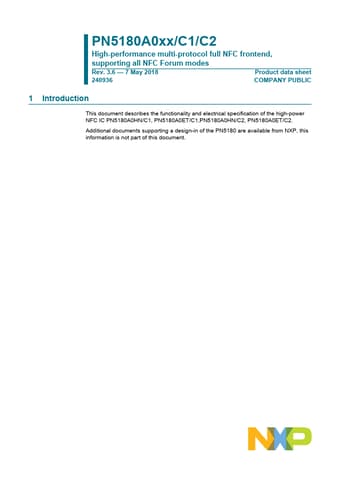

PN5180A0xx/C1/C2 High-performance multi-protocol full NFC frontend, supporting all NFC Forum modes Rev.
3.6 7 May 2018 Product data sheet 240936 COMPANY PUBLIC 1 Introduction This document describes the functionality and electrical specification of the high-power NFC IC PN5180A0HN/C1, PN5180A0ET/C1,PN5180A0HN/C2, PN5180A0ET/C2.
Additional documents supporting a design-in of the PN5180 are available from NXP, this information is not part of this document.
NXP Semiconductors PN5
PN5180A0ETC2J Features
* Transmitter current up to 250 mA
* Dynamic Power Control (DPC) for optimized RF performance, even under detuned antenna conditions
* Adaptive Waveform Control (AWC) automatically adjusts the transmitter modulation for RF compliancy
* Adaptive Receiver Control (ARC)
Datasheet Details
PN5180A0ETC2J, PN5180A0HNC1E
1.02 MB
High-performance multi-protocol full nfc frontend.
This datasheet PDF includes multiple part numbers: PN5180A0ETC2J, PN5180A0HNC1E.
Please refer to the document for exact specifications by model.
