PN5180A0ETC2QL - High-performance multi-protocol full NFC frontend

Product Overview

NXP

📥 Download Datasheet

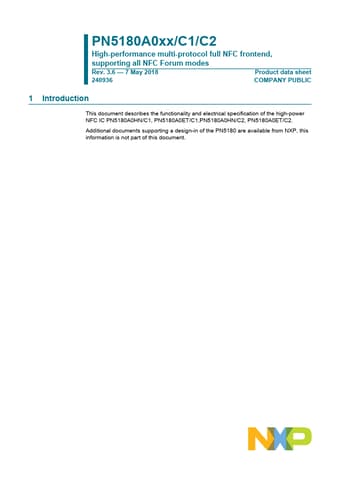

PN5180A0ETC2QL High-performance multi-protocol full NFC frontend by NXP - Datasheet Preview — Datasheet preview – PN5180A0ETC2QL

Datasheet Details

Part number	PN5180A0ETC2QL
Manufacturer	NXP
File Size	1.02 MB
Description	High-performance multi-protocol full NFC frontend
Datasheet	PN5180A0ETC2QL Datasheet
Note	This datasheet PDF includes multiple part numbers: PN5180A0ETC2QL, PN5180A0HNC1E. Please refer to the document for exact specifications by model.
Additional preview pages of the PN5180A0ETC2QL datasheet.

Product details

Description

PN5180, the best full NFC frontend on the market.

Features

Transmitter current up to 250 mA.
Dynamic Power Control (DPC) for optimized RF performance, even under detuned antenna conditions.
Adaptive Waveform Control (AWC) automatically adjusts the transmitter modulation for RF compliancy.
Adaptive Receiver Control (ARC) automatically adjusts the receiver parameters for always reliable communication.
Includes NXP ISO/IEC14443 type A and Innovatron ISO/IEC14443 type B intellectual property licensing rights.
