PN5180A0ETC3J, PN5180 Datasheet - NXP

PN5180A0ETC3J High-performance multi-protocol full NFC frontend

of the PN5180A0ET/C3 and PN5180A0ET/C4 is described in an addendum to this document. Additional documents supporting a design-in of the PN5180 are available from NXP, this additional design-in information is not part of this document. NXP Semiconductors PN5180A0xx/C3,C4 High-performance multiprot.

PN5180A0ETC3J Features

* Transmitter current up to 250 mA

* Dynamic Power Control (DPC) for optimized RF performance, even under detuned antenna conditions

* Adaptive Waveform Control (AWC) automatically adjusts the transmitter modulation for RF compliancy

* Adaptive Receiver Control (ARC)

PN5180-NXP.pdf

This datasheet PDF includes multiple part numbers: PN5180A0ETC3J, PN5180. Please refer to the document for exact specifications by model.

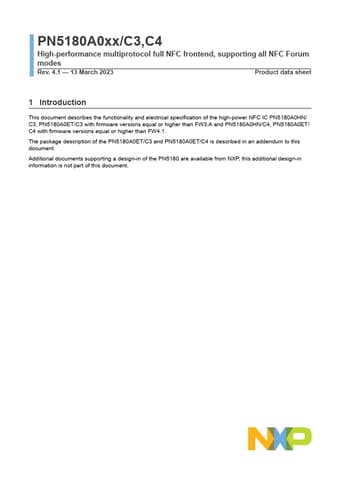

PN5180A0ETC3J Datasheet Preview Page 2 PN5180A0ETC3J Datasheet Preview Page 3

Datasheet Details

Part number:

PN5180A0ETC3J, PN5180

Manufacturer:

NXP ↗

File Size:

1.17 MB

Description:

High-performance multi-protocol full nfc frontend.

Note:

This datasheet PDF includes multiple part numbers: PN5180A0ETC3J, PN5180.
Please refer to the document for exact specifications by model.
