74LS374 - Octal D-Type Transparent Latches and Edge-Triggered Flip-Flops

This page provides the datasheet information for the 74LS374, a member of the 74LS373 Octal D-Type Transparent Latches and Edge-Triggered Flip-Flops family.

Datasheet Summary

Description

These 8-bit registers feature totem-pole TRI-STATE outputs designed specifically for driving highly-capacitive or relative- ly low-impedance loads The high-impedance state and in- creased high-logic level drive provide these registers with the capability of being connected directly to and drivi

Features

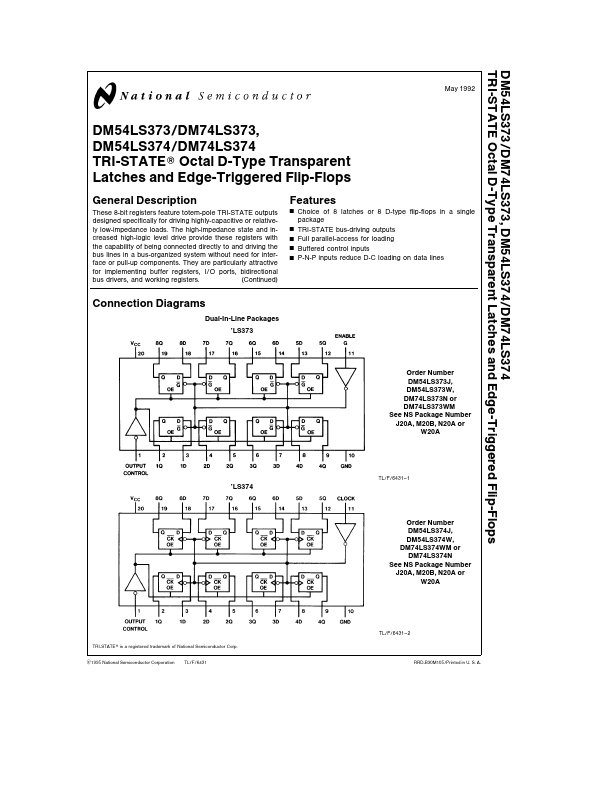

  • Y Choice of 8 latches or 8 D-type flip-flops in a single package Y TRI-STATE bus-driving outputs Y Full parallel-access for loading Y Buffered control inputs Y P-N-P inputs reduce D-C loading on data lines Connection Diagrams Dual-In-Line Packages ’LS373 Order Number DM54LS373J DM54LS373W DM74LS373N or DM74LS373WM See NS Package Number J20A M20B N20A or W20A ’LS374 TL F 6431.
  • 1 Order Number DM54LS374J DM54LS374W DM74LS374WM or DM74LS374N See NS Package Number J20A M20B N20A or W20A.

📥 Download Datasheet

Datasheet preview – 74LS374

Datasheet Details

Part number 74LS374
Manufacturer National Semiconductor
File Size 150.65 KB
Description Octal D-Type Transparent Latches and Edge-Triggered Flip-Flops
Datasheet download datasheet 74LS374 Datasheet
Additional preview pages of the 74LS374 datasheet.

📁 Similar Datasheet

  • 74LS374 - OCTAL D-TYPE TRANSPARENT LATCHES AND EDGE-TRIGGERED FLIP-FLOPS (Texas Instruments)
  • 74LS374 - Octal D-type Edge-triggered Flip-Flips (Hitachi Semiconductor)
  • 74LS374 - Octal D-Type Flip-Flop (onsemi)
  • 74LS374 - OCTAL TRANSPARENT LATCH (Motorola)
  • 74LS374 - Latches/Flip-Flops (Signetics)
  • 74LS374 - 3-STATE Octal D-Type Transparent Latches and Edge-Triggered Flip-Flops (Fairchild Semiconductor)
  • 74LS37 - Quadruple 2-input Positive NAND Buffers (Hitachi Semiconductor)
  • 74LS373 - 3-STATE Octal D-Type Transparent Latches and Edge-Triggered Flip-Flops (Fairchild Semiconductor)
  • 74LS373 - OCTAL D-TYPE TRANSPARENT LATCHES AND EDGE-TRIGGERED FLIP-FLOPS (Texas Instruments)
  • 74LS373 - Octal D-type Transparent Latches (Hitachi Semiconductor)
Other Datasheets by National Semiconductor
  • 74LS373 - Octal D-Type Transparent Latches and Edge-Triggered Flip-Flops
  • 74LS375 - 4-Bit Latch
  • 74LS30 - 8-Input NAND Gate
  • 74LS32 - Quad 2-Input OR Gates
  • 74LS352 - Dual 4-Line to 1-Line Data Selectors/Multiplexers
  • 74LS367 - Hex TRI-STATE Buffers
  • 74LS04 - Hex Inverting Gates
  • 74LS126A - Quad TRI-STATE Buffer

Full PDF Text Transcription

Click to expand full text

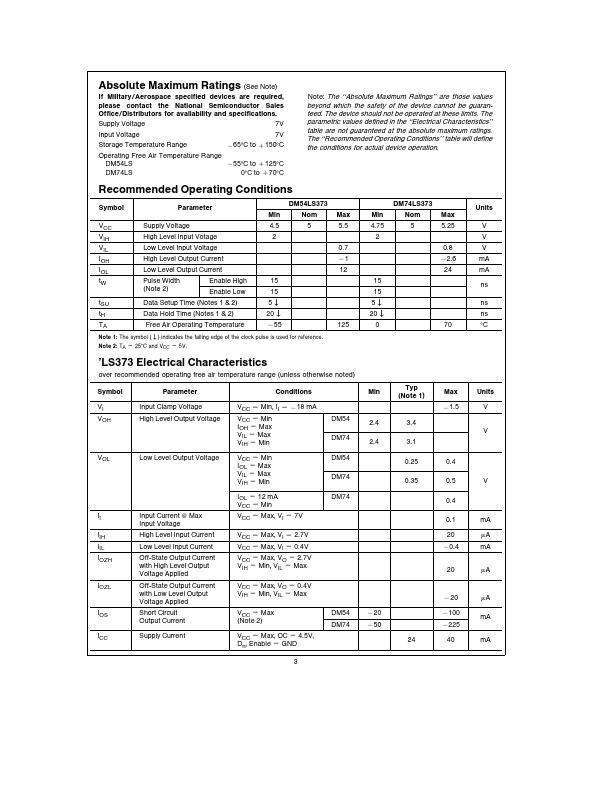

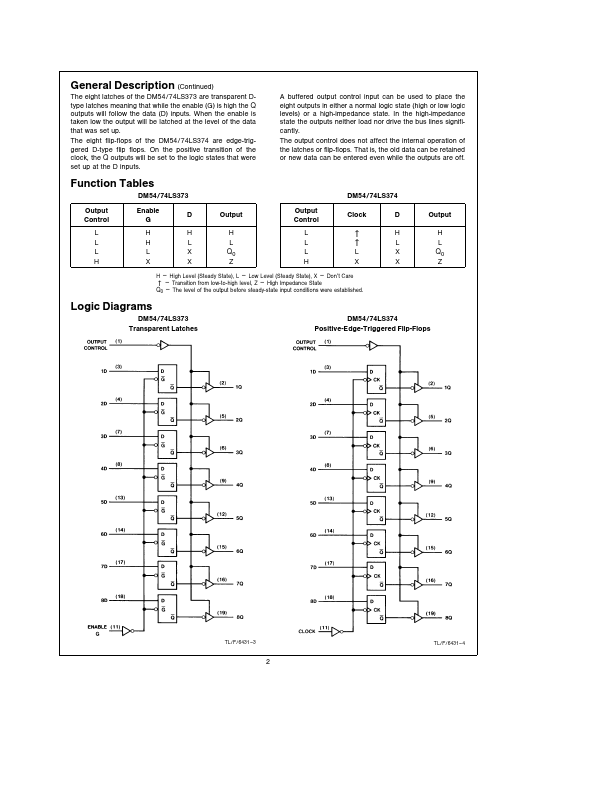

DM54LS373 DM74LS373 DM54LS374 DM74LS374 TRI-STATE Octal D-Type Transparent Latches and Edge-Triggered Flip-Flops May 1992 DM54LS373 DM74LS373 DM54LS374 DM74LS374 TRI-STATE Octal D-Type Transparent Latches and Edge-Triggered Flip-Flops General Description These 8-bit registers feature totem-pole TRI-STATE outputs designed specifically for driving highly-capacitive or relative- ly low-impedance loads The high-impedance state and in- creased high-logic level drive provide these registers with the capability of being connected directly to and driving the bus lines in a bus-organized system without need for inter- face or pull-up components They are particularly attractive for implementing buffer registers I O ports bidirectional bus drivers and working registers (Continued) Featu
