DS1634

CMOS Dual Peripheral Drivers

DS1634 Features

* output transistor protection if the VCC supply is lost by forcing the output into the high impe- dance OFF state with the same breakdown levels as when VCC was applied Pin-outs are the same as the respective logic functions found in the following popular series of circuits DS75451 DS75461 This feat

DS1634 General Description

The DS1631 series of dual peripheral drivers was designed to be a universal set of interface components for CMOS circuits Each circuit has CMOS compatible inputs with thresholds that track as a function of VCC (approximately VCC) The inputs are PNPs providing the high impedance necessary for interfa.

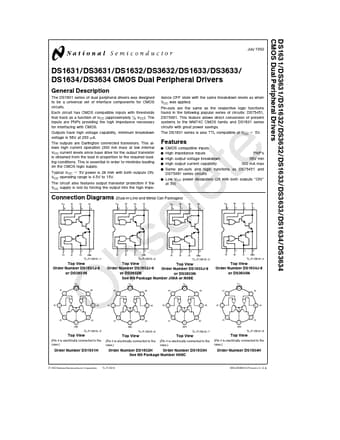

DS1634 Datasheet (370.03 KB)

Preview of DS1634 PDF

Datasheet Details

Part number:

DS1634

Manufacturer:

National Semiconductor

File Size:

370.03 KB

Description:

Cmos dual peripheral drivers.
Obsolete DS1631 DS3631 DS1632 DS3632 DS1633 DS3633 DS1634 DS3634 CMOS Dual Peripheral Drivers July 1992 DS1631 DS3631 DS1632 DS3632 DS1633 DS3633 D.
