DS3893A

BTL TURBOTRANSCEIVER

National Semiconductor

DS3893A Features

* n Fast single ended transceiver (typical driver enable and receiver propagation delays are 3.5 ns and 5 ns) n Backplane Transceiver Logic (BTL) levels (1V logic swing) n Less than 5 pF bus-port capacitance n Drives densely loaded backplanes with equivalent load impedances down to 10Ω n 4 transceiver

DS3893A General Description

The TURBOTRANSCEIVER is designed for use in very high speed bus systems. The bus terminal characteristics of the TURBOTRANSCEIVER are referred to as “Backplane Transceiver Logic” (BTL). BTL is a new logic signaling standard that has been developed to enhance the performance of backplane buses. BTL c.

DS3893A Datasheet (618.11 KB)

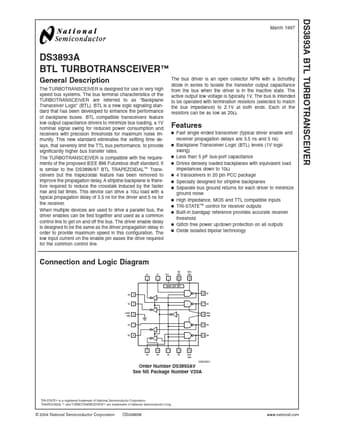

DS3893A Datasheet Preview — Preview of DS3893A PDF

Datasheet Details

Part number:

DS3893A

Manufacturer:

National Semiconductor

File Size:

618.11 KB

Description:

Btl turbotransceiver.
