DS91M047

125 MHz Quad M-LVDS Transceiver

DS91M047 Features

* DC - 125 MHz / 250 Mbps low jitter, low skew, low power

* operation Conforms to TIA/EIA-899 M-LVDS Standard Controlled transition times (2 ns typ) minimize reflections 8 kV ESD on M-LVDS pins protects adjoining components Flow-through pinout simplifies PCB lay

DS91M047 General Description

The DS91M047 is a high-speed quad M-LVDS line driver designed for driving clock or data signals to up to four multipoint networks. M-LVDS (Multipoint LVDS) is a new family of bus interface devices based on LVDS technology specifically designed for multipoint and multidrop cable and backplane applica.

DS91M047 Datasheet (381.13 KB)

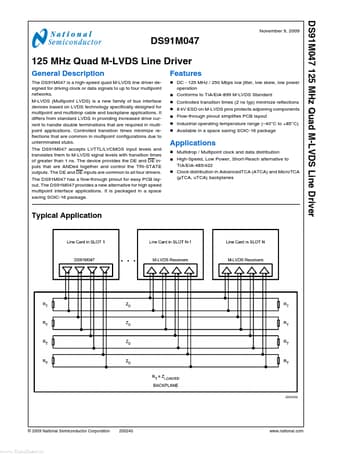

Preview of DS91M047 PDF

Datasheet Details

Part number:

DS91M047

Manufacturer:

National Semiconductor

File Size:

381.13 KB

Description:

125 mhz quad m-lvds transceiver.
