LM1880 No-Holds Vertical Horizontal June 1987 LM1880 No-Holds Vertical Horizontal General .
The LM1880 uses compatible Linear I2L technology to produce the first T V horizontal and vertical processing system which completely eliminates the ho.

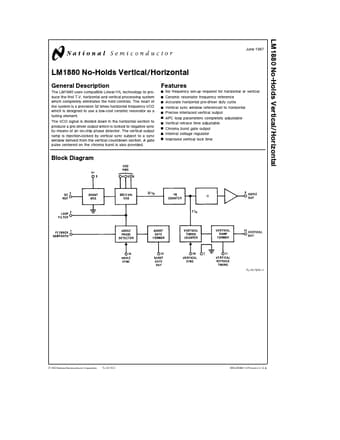

datasheet Preview Page 1 from Datasheet4u.com

LM1880-NationalSemiconductor.pdf

LM1880 Datasheet Preview — Preview of LM1880 PDF

Datasheet Details

Part number:

LM1880

Manufacturer:

National Semiconductor

File Size:

161.80 KB

Description:

No-Holds Vertical/Horizontal

Features

* Y No frequency set-up required for horizontal or vertical Y Ceramic resonator frequency reference Y Accurate horizontal pre-driver duty cycle Y Vertical sync window referenced to horizontal Y Precise interlaced vertical output Y APC loop parameters completely adjustable Y Vertical retrace time adjus

Applications

* Information to modify loop parameters 5 Applications Information I VERTICAL COUNTER The vertical counter in the LM1880 replaces the conventional vertical oscillator in a television receiver The vertical lock-in range is governed by the width of the vertical sync window which opens from count 510 t
