LM1882

Programmable Video Sync Generator

National Semiconductor

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	Stock	Quantity	Price	Buy Now
	Fairchild Semiconductor Corporation	LM1882	74ACT715SC	IC,TV/VIDEO CIRCUIT,TV/VIDEO SYNC CIRCUIT,ACT-CMOS,SOP,20PIN,PLASTIC (Also Known As: LM1882CM)	Quest Components	430	401 units	$4.59	🛒 Buy Now

📥 Download PDF (356.49 KB)

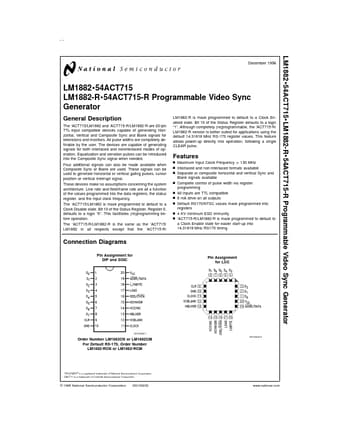

LM1882 Datasheet Preview Page 1 — Preview of LM1882 Datasheet

Datasheet Details

Part number:

LM1882

Manufacturer:

National Semiconductor

File Size:

356.49 KB

Download:

📄 Download LM1882 Datasheet PDF

Description:

Programmable video sync generator.
LM1882*54ACT715*LM1882-R*54ACT715-R Programmable Video Sync Generator December 1998 LM1882*54ACT71.
The ’ACT715/LM1882 and ’ACT715-R/LM1882-R are 20-pin TTL-input compatible devices capable of generat.

✔ LM1882 Features

n Maximum Input Clock Frequency > 130 MHz n Interlaced and non-interlaced formats available n Separate or composite horizontal and vertical Sync and Blank signals availab

✔ LM1882 Application

using the default 14.31818 MHz RS-170 register values. This feature allows power-up directly into operation,
