LM1886 - TV Video Matrix D to A

National Semiconductor

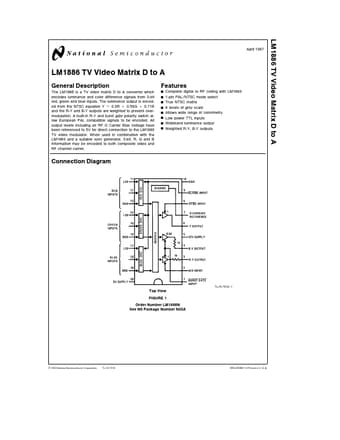

LM1886 Datasheet Preview — Preview of LM1886 PDF

Datasheet Details

Part number	LM1886
Manufacturer	National Semiconductor ↗
File Size	136.38 KB
Description	TV Video Matrix D to A
Datasheet	LM1886_NationalSemiconductor.pdf

LM1886 Product details

Description

The LM1886 is a TV video matrix D to A converter which encodes luminance and color difference signals from 3-bit red green and blue inputs The luminance output is encoded from the NTSC equation Y e 0 3R a 0 59G a 0 11B and the R-Y and B-Y outputs are weighted to prevent overmodulation A built-in R-Y and burst gate polarity switch allow European PAL compatible signals to be encoded All output levels including an RF O Carrier Bias Voltage have been referenced to 5V for direct connection to the LM1

Features

Y Complete digital to RF coding with LM1889 Y 1-pin PAL NTSC mode select Y True NTSC matrix Y 8 levels of grey scale Y Allows wide range of colorimetry Y Low power TTL inputs Y Wideband luminance output Y Weighted R-Y B-Y outputs Connection Diagram Top View FIGURE 1 Order Number LM1886N See NS Package Number N20A TL H 7916.
1 C1995 National Semiconductor Corporation TL H 7916 RRD-B30M115 Printed in U S A Absolute Maximum Ratings If Military Aerospace specified devices are require.
