LM2720

PWM Controller

LM2720 Features

* n n n n n n n n n n n n Ultra fast load transient response Enables all surface-mount-design Selectable 2, 3, 4 phase operation Clock frequency from 40 kHz to 10 MHz Precision load current sharing 5-bit programmable from 3.5V to 1.3V VID code compatible to VRM 8.X specification Output voltage is 2.0V

LM2720 General Description

The LM2720 provides an attractive solution for power supplies of high power microprocessors exhibiting ultra fast load transients. Compared to a conventional single-phase supply, an LM2720 based multi-phase supply distributes the thermal and electrical loading among components in multiple phases and.

LM2720 Datasheet (149.95 KB)

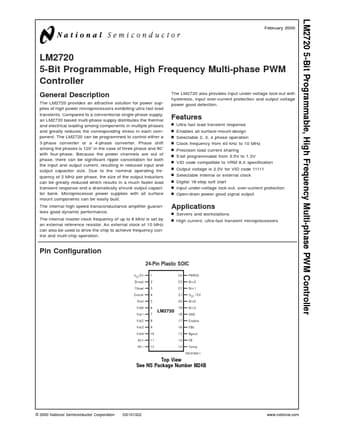

Preview of LM2720 PDF

Datasheet Details

Part number:

LM2720

Manufacturer:

National Semiconductor

File Size:

149.95 KB

Description:

Pwm controller.
LM2720 5-Bit Programmable, High Frequency Multi-phase PWM Controller February 2000 LM2720 5-Bit Programmable, High Frequency Multi-phase PWM Control.
