LM2722 Datasheet - National Semiconductor

LM2722 MOSFET Driver

The LM2722, part of the LM2726 family, is designed to be used with multi-phase controllers. This part differs from the LM2726 by changing the functionality of the SYNC_EN pin from a whole chip enable to a low side MOSFET enable. As a result, the SYNC_EN pin now provides control between Synchronous a.

LM2722 Features

* n n n n n Synchronous or Asynchronous Operation Adaptive shoot-through protection Input Under-Voltage-Lock-Out Typical 20ns internal delay Plastic 8-pin SO package Applications n Driver for LM2723 Intel Mobile Northwood CPU core power supply. n High Current DC/DC Power Supplies n High Input Voltage

LM2722 Datasheet (162.35 KB)

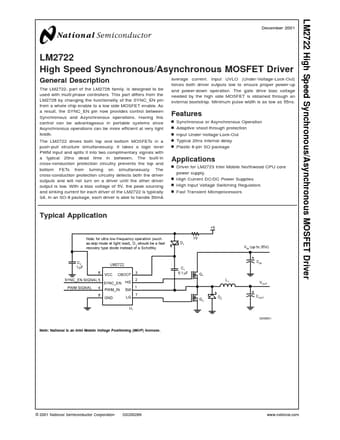

Preview of LM2722 PDF

Datasheet Details

Part number:

LM2722

Manufacturer:

National Semiconductor

File Size:

162.35 KB

Description:

Mosfet driver.
