LM27222

High-Speed 4.5A Synchronous MOSFET Driver

LM27222 Features

* 1

* 2 Adaptive Shoot-through Protection

* 10ns Dead Time

* 8ns Propagation Delay

* 30ns Minimum On-time

* 0.4Ω Pull-down and 0.9Ω Pull-up Drivers

* 4.5A Peak Driving Current

* MOSFET Tolerant Design

* 5µA Quiescent Current

* 30V

LM27222 General Description

The LM27222 is a dual N-channel MOSFET driver designed to drive MOSFETs in push-pull configurations as typically used in synchronous buck regulators. The LM27222 takes the PWM output from a controller and provides the proper timing and drive levels to the power stage MOSFETs. Adaptive shootthrough p.

LM27222 Datasheet (1.01 MB)

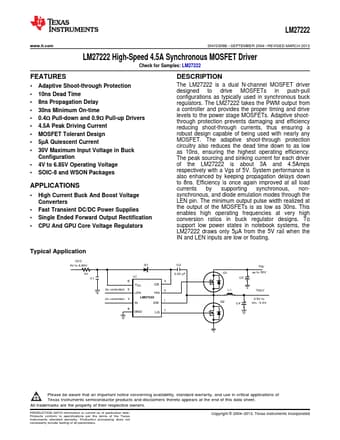

Preview of LM27222 PDF

Datasheet Details

Part number:

LM27222

Manufacturer:

Texas Instruments ↗

File Size:

1.01 MB

Description:

High-speed 4.5a synchronous mosfet driver.
LM27222 www.ti.com SNVS306B

* SEPTEMBER 2004

* REVISED MARCH 2013 LM27222 High-Speed 4.5A Synchronous MOSFET Driver Check for Sampl.
