LM27241

Synchronous Buck Regulator Controller

LM27241 Features

* 1

* 2 Input voltage range from 5.5V to 28V

* Forced-PWM or Pulse-skip modes

* Lossless bottom-side FET current sensing

* Adaptive duty cycle clamping

* High current N-channel FET drivers

* Low shutdown supply currents

* Reference voltage accurat

LM27241 General Description

The LM27241 is an adjustable 200kHz-500kHz single channel voltage-mode controlled high-speed synchronous buck regulator controller. It is ideally suited for battery powered applications such as laptop and notebook computers. The LM27241 requires only N-channel FETs for both the upper and lower posit.

LM27241 Datasheet (1.23 MB)

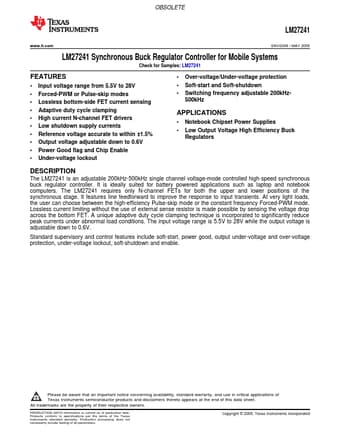

Preview of LM27241 PDF

Datasheet Details

Part number:

LM27241

Manufacturer:

Texas Instruments ↗

File Size:

1.23 MB

Description:

Synchronous buck regulator controller.
OBSOLETE LM27241 www.ti.com SNVS309

* MAY 2005 LM27241 Synchronous Buck Regulator Controller for Mobile Systems Check for Samples: LM27241.
