LM4901 - 1.6 Watt Audio Power Amplifier

Datasheet Summary

Description

The LM4901 is an audio power amplifier primarily designed for demanding applications in mobile phones and other portable communication device applications.

Features

a low-power consumption shutdown mode. To facilitate this, Shutdown may be enabled by either logic high or low depending on mode selection. Driving the shutdown mode pin either high or low enables the shutdown pin to be driven in a likewise manner to enable shutdown. The LM4901 contains advanced pop & click circuitry which eliminates noise which would otherwise occur during turn-on and turn-off transitions. The LM4901 is unity-gain stable and can be configured by external gain-setting resistors.

Datasheet Details

Part number	LM4901
Manufacturer	National Semiconductor
File Size	1.21 MB
Description	1.6 Watt Audio Power Amplifier
Datasheet	LM4901 Datasheet
Additional preview pages of the LM4901 datasheet.

📁 Similar Datasheet

LM4901 - 1.6 Watt Audio Power Amplifier (Texas Instruments)

LM4900 - Audio Power Amplifier (Texas Instruments)

LM4902 - 265mW at 3.3V Supply Audio Power Amplifier (Texas Instruments)

LM4906 - Bypass-Capacitor-less Audio Amplifier (Texas Instruments)

LM4910 - Output Capacitor-less Stereo 35mW Headphone Amplifier (Texas Instruments)

LM49100 - Mono Class AB Audio Sub-System (Texas Instruments)

LM49101 - Mono Class AB Audio Subsystem (Texas Instruments)

LM4911 - Stereo 40mW Low Noise Headphone Amplifier (Texas Instruments)

LM4911Q - Stereo 40mW Low Noise Headphone Amplifier (Texas Instruments)

LM49120 - Audio Sub-System (Texas Instruments)

Full PDF Text Transcription

Click to expand full text

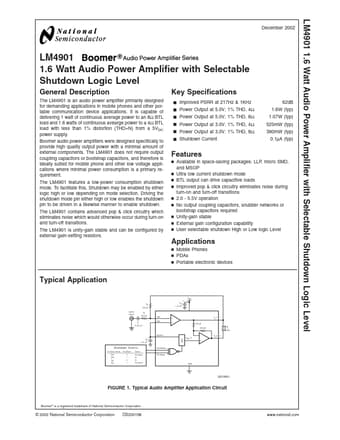

LM4901 1.6 Watt Audio Power Amplifier with Selectable Shutdown Logic Level December 2002 LM4901 1.6 Watt Audio Power Amplifier with Selectable Shutdown Logic Level General Description The LM4901 is an audio power amplifier primarily designed for demanding applications in mobile phones and other portable communication device applications. It is capable of delivering 1 watt of continuous average power to an 8Ω BTL load and 1.6 watts of continuous avearge power to a 4Ω BTL load with less than 1% distortion (THD+N) from a 5VDC power supply. Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal amount of external components.
