Description

The LM49120 is a compact audio subsystem designed for portable handheld applications such as cellular phones.

Features

1.
2 RF Immunity.
Selectable OCL/SE Headphone Drivers.
32 Step Volume Control.
Click and Pop Suppression.
Independent Speaker and Headphone Gain Settings.
Minimum External Components.
Thermal Over Load Protection.
Micro-power Shutdown.
Space Saving 16.
bump DSBGA Package.
Thermal Shutdown Protection.
Micro-power Shutdown.
I2C Control Interface.

Datasheet Details

Part number	LM49120
Manufacturer	Texas Instruments
File Size	1.38 MB
Description	Audio Sub-System
Datasheet	LM49120 Datasheet
Additional preview pages of the LM49120 datasheet.

📁 Similar Datasheet

LM4912 - Stereo 40mW Low Noise Headphone Amplifier (National Semiconductor)

LM4910 - Output Capacitor-less Stereo 35mW Headphone Amplifier (National Semiconductor)

LM49100 - Mono Class AB Audio Subsystem (National Semiconductor)

LM49101 - Mono Class AB Audio Subsystem (National Semiconductor)

LM4911 - Stereo 40mW Low Noise Headphone Amplifier (National Semiconductor)

LM4913 - 2W Monaural/ 90mW Stereo Headphone Audio Amplifier (National Semiconductor)

LM4914 - 1W Monaural/ 85mW Stereo Headphone Audio Amplifier (National Semiconductor)

LM4915 - Pseudo-Differential Mono Headphone Amplifier (National Semiconductor)

LM49150 - Mono Class D Audio Subsystem (National Semiconductor)

LM49151 - Mono Class D Audio Subsystem (National Semiconductor Corporation)

Full PDF Text Transcription

Click to expand full text

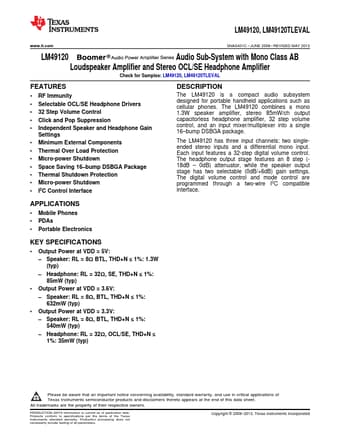

LM49120, LM49120TLEVAL www.ti.com SNAS431C – JUNE 2008 – REVISED MAY 2013 LM49120 Audio Sub-System with Mono Class AB Loudspeaker Amplifier and Stereo OCL/SE Headphone Amplifier Check for Samples: LM49120, LM49120TLEVAL FEATURES 1 •2 RF Immunity • Selectable OCL/SE Headphone Drivers • 32 Step Volume Control • Click and Pop Suppression • Independent Speaker and Headphone Gain Settings • Minimum External Components • Thermal Over Load Protection • Micro-power Shutdown • Space Saving 16–bump DSBGA Package • Thermal Shutdown Protection • Micro-power Shutdown • I2C Control Interface DESCRIPTION The LM49120 is a compact audio subsystem designed for portable handheld applications such as cellular phones. The LM49120 combines a mono 1.
