LM4912 - Stereo 40mW Low Noise Headphone Amplifier

Datasheet Summary

Description

The LM4912 is an stereo audio power amplifier capable of delivering 40mW per channel of continuous average power into a 16Ω load or 25mW per channel into a 32Ω load at 1% THD form a 3V power supply.

Features

  • a low-power consumption shutdown mode and a power mute mode that allows for faster turn on time with less than 1mV voltage change at outputs on release. Additionally, the LM4912 features an internal thermal shutdown protection mechanism. The LM4912 is unity gain stable and may be configured with external gain-setting resistors. Key Specifications n PSRR at 217 Hz and 1kHz 65dB (typ) n Output Power at 1kHz with VDD = 2.4V, 1% THD+N into a 16Ω load 25mW (typ) n Output Power at 1kHz with VDD = 3V,.

📥 Download Datasheet

Datasheet preview – LM4912

Datasheet Details

Part number LM4912
Manufacturer National Semiconductor
File Size 699.16 KB
Description Stereo 40mW Low Noise Headphone Amplifier
Datasheet download datasheet LM4912 Datasheet
Additional preview pages of the LM4912 datasheet.

📁 Similar Datasheet

  • LM49120 - Audio Sub-System (Texas Instruments)
  • LM49120TLEVAL - Audio Sub-System (Texas Instruments)
  • LM4910 - Output Capacitor-less Stereo 35mW Headphone Amplifier (Texas Instruments)
  • LM49100 - Mono Class AB Audio Sub-System (Texas Instruments)
  • LM49101 - Mono Class AB Audio Subsystem (Texas Instruments)
  • LM4911 - Stereo 40mW Low Noise Headphone Amplifier (Texas Instruments)
  • LM4911Q - Stereo 40mW Low Noise Headphone Amplifier (Texas Instruments)
  • LM4915 - Pseudo-Differential Mono Headphone Amplifier (Texas Instruments)
  • LM49150 - Mono Class D Audio Subsystem (Texas Instruments)
  • LM49150TLEVAL - Mono Class D Audio Subsystem (Texas Instruments)
Other Datasheets by National Semiconductor
  • LM4910 - Output Capacitor-less Stereo 35mW Headphone Amplifier
  • LM49100 - Mono Class AB Audio Subsystem
  • LM49101 - Mono Class AB Audio Subsystem
  • LM4911 - Stereo 40mW Low Noise Headphone Amplifier
  • LM4913 - 2W Monaural/ 90mW Stereo Headphone Audio Amplifier
  • LM4914 - 1W Monaural/ 85mW Stereo Headphone Audio Amplifier
  • LM4915 - Pseudo-Differential Mono Headphone Amplifier
  • LM49150 - Mono Class D Audio Subsystem

Full PDF Text Transcription

Click to expand full text

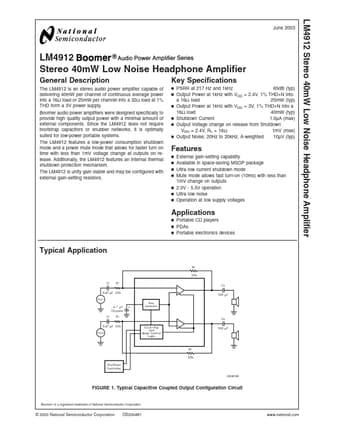

LM4912 Stereo 40mW Low Noise Headphone Amplifier June 2003 LM4912 Stereo 40mW Low Noise Headphone Amplifier General Description The LM4912 is an stereo audio power amplifier capable of delivering 40mW per channel of continuous average power into a 16Ω load or 25mW per channel into a 32Ω load at 1% THD form a 3V power supply. Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal amount of external components. Since the LM4912 does not require bootstrap capacitors or snubber networks, it is optimally suited for low-power portable systems. The LM4912 features a low-power consumption shutdown mode and a power mute mode that allows for faster turn on time with less than 1mV voltage change at outputs on release.
