LM49100 - Mono Class AB Audio Sub-System

Datasheet Summary

Description

The LM49100 is a fully integrated audio subsystem capable of delivering 1.275W of continuous average power into a mono 8Ω bridged-tied load (BTL) with 1% THD+N and with a 5V power supply.

Features

1.
2 Mono and Stereo Inputs.
Thermal Overload Protection.
True-Ground Headphone Drivers.
I2C Control Interface.
Input Mute Attenuation.
2nd Stage Headphone Attenuator.
32-Step Digital Volume Control.
10 Operating Modes.
Minimum External Components.
Click and Pop Suppression.
Micro-Power Shutdown.
Available in Space-Saving 3mm x 3mm 25-Bump csBGA Package.
RF Suppression KEY.

Datasheet Details

Part number	LM49100
Manufacturer	Texas Instruments
File Size	4.09 MB
Description	Mono Class AB Audio Sub-System
Datasheet	LM49100 Datasheet
Additional preview pages of the LM49100 datasheet.

📁 Similar Datasheet

LM49100 - Mono Class AB Audio Subsystem (National Semiconductor)

LM4910 - Output Capacitor-less Stereo 35mW Headphone Amplifier (National Semiconductor)

LM49101 - Mono Class AB Audio Subsystem (National Semiconductor)

LM4911 - Stereo 40mW Low Noise Headphone Amplifier (National Semiconductor)

LM4912 - Stereo 40mW Low Noise Headphone Amplifier (National Semiconductor)

LM4913 - 2W Monaural/ 90mW Stereo Headphone Audio Amplifier (National Semiconductor)

LM4914 - 1W Monaural/ 85mW Stereo Headphone Audio Amplifier (National Semiconductor)

LM4915 - Pseudo-Differential Mono Headphone Amplifier (National Semiconductor)

LM49150 - Mono Class D Audio Subsystem (National Semiconductor)

LM49151 - Mono Class D Audio Subsystem (National Semiconductor Corporation)

Full PDF Text Transcription

Click to expand full text

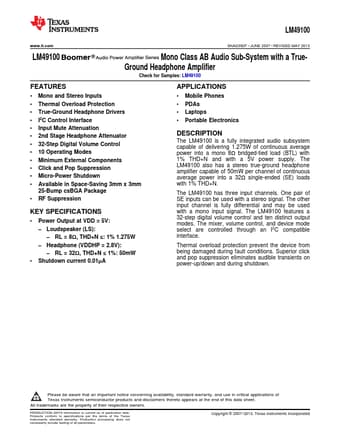

LM49100 www.ti.com SNAS392F – JUNE 2007 – REVISED MAY 2013 LM49100 Mono Class AB Audio Sub-System with a TrueGround Headphone Amplifier Check for Samples: LM49100 FEATURES 1 •2 Mono and Stereo Inputs • Thermal Overload Protection • True-Ground Headphone Drivers • I2C Control Interface • Input Mute Attenuation • 2nd Stage Headphone Attenuator • 32-Step Digital Volume Control • 10 Operating Modes • Minimum External Components • Click and Pop Suppression • Micro-Power Shutdown • Available in Space-Saving 3mm x 3mm 25-Bump csBGA Package • RF Suppression KEY SPECIFICATIONS • Power Output at VDD = 5V: – Loudspeaker (LS): – RL = 8Ω, THD+N ≤: 1% 1.275W – Headphone (VDDHP = 2.8V): – RL = 32Ω, THD+N ≤ 1%: 50mW • Shutdown current 0.
