LM4911Q - Stereo 40mW Low Noise Headphone Amplifier

This page provides the datasheet information for the LM4911Q, a member of the LM4911 Stereo 40mW Low Noise Headphone Amplifier family.

Datasheet Summary

Description

The LM4911/LM4911Q is an stereo audio power amplifier capable of delivering 40mW per channel of continuous average power into a 16Ω load or 25mW per channel into a 32Ω load at 1% THD+N from a 3V power supply.

Features

  • 1.
  • 2 OCL or Capacitively Coupled Outputs (Patent Pending).
  • External Gain-Setting Capability.
  • Available in Space-Saving VSSOP and WSON Packages.
  • Ultra Low Current Shutdown Mode.
  • Mute Mode Allows Fast Turn-on (1ms) with Less Than 1mV Change on Outputs.
  • 2V - 5.5V Operation.
  • Ultra Low Noise.
  • LM4911QMM is an Automotive Grade Product that is AEC-Q100 Grade 2 Qualified.

📥 Download Datasheet

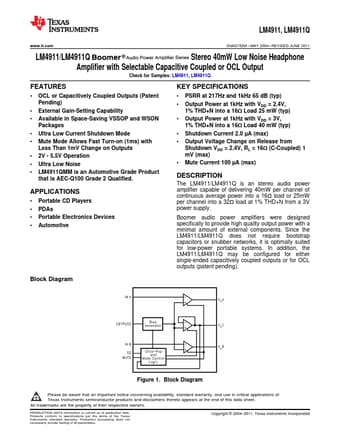

Datasheet preview – LM4911Q
