LM49150 - Mono Class D Audio Subsystem

LM49150 Description

LM49150, LM49150TLEVAL www.ti.com SNAS439C * AUGUST 2008 * REVISED MAY 2013 LM49150 Mono Class D Audio Subsystem with Earpiece Dri.
The LM49150 is a fully integrated audio subsystem designed for portable handheld applications such as cellular phones.

LM49150 Features

* 1
* 23 E2S Class D Amplifier
* Ground Referenced Headphone Outputs
* Eliminates Output Coupling Capacitors
* I2C Volume and Mode Control
* Mono Earpiece Amplifier
* Flexible Output for Speaker and Headphone Output
* 20
* Bump DSBGA Package

LM49150 Applications

* Mobile Phones
* PDAs

📥 Download Datasheet

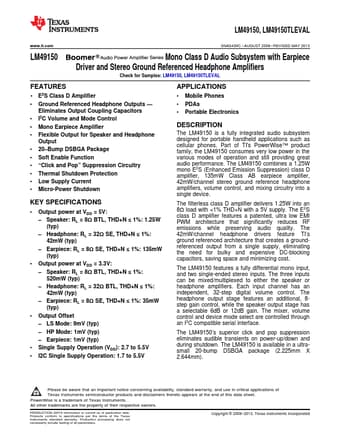

Preview of LM49150 PDF
