LM49151 - Mono Class D Audio Subsystem

Datasheet Summary

Description

The LM49151 is a fully integrated audio subsystem designed for portable handheld applications such as cellular phones.

Features

  • 1.
  • 23 E2S Class D Amplifier.
  • Ground Referenced Outputs.
  • Eliminates Output Coupling Capacitors.
  • I2C Programmable No Clip Function with Clip Control.
  • Voltage Limiter Speaker Protection.
  • I2C Volume and Mode Control.
  • Ear Piece Amplifier.
  • Advanced Click-and-Pop Suppression.
  • Low Supply Current.
  • Micro-Power Shutdown.
  • 20-bump DSBGA Package.

📥 Download Datasheet

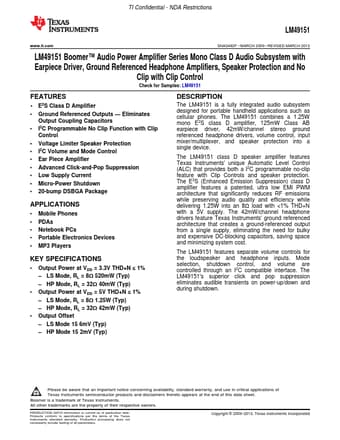

Datasheet preview – LM49151

Datasheet Details

Part number LM49151
Manufacturer Texas Instruments
File Size 687.52 KB
Description Mono Class D Audio Subsystem
Datasheet download datasheet LM49151 Datasheet
