LM49150TLEVAL - Mono Class D Audio Subsystem

This page provides the datasheet information for the LM49150TLEVAL, a member of the LM49150 Mono Class D Audio Subsystem family.

Datasheet Summary

Description

The LM49150 is a fully integrated audio subsystem designed for portable handheld applications such as cellular phones.

Part of TI's PowerWise™ product family, the LM49150 consumes very low power in the various modes of operation and still providing great audio performance.

Features

  • 1.
  • 23 E2S Class D Amplifier.
  • Ground Referenced Headphone Outputs.
  • Eliminates Output Coupling Capacitors.
  • I2C Volume and Mode Control.
  • Mono Earpiece Amplifier.
  • Flexible Output for Speaker and Headphone Output.
  • 20.
  • Bump DSBGA Package.
  • Soft Enable Function.
  • “Click and Pop” Suppression Circuitry.
  • Thermal Shutdown Protection.
  • Low Supply Current.
  • Micro-Power Shutdown KEY.

📥 Download Datasheet

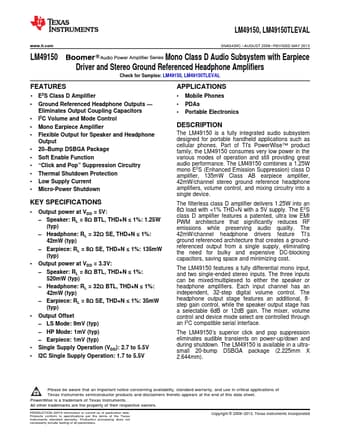

Datasheet preview – LM49150TLEVAL
