LM49120TLEVAL - Audio Sub-System

This page provides the datasheet information for the LM49120TLEVAL, a member of the LM49120 Audio Sub-System family.

Datasheet Summary

Description

The LM49120 is a compact audio subsystem designed for portable handheld applications such as cellular phones.

b

Features

  • 1.
  • 2 RF Immunity.
  • Selectable OCL/SE Headphone Drivers.
  • 32 Step Volume Control.
  • Click and Pop Suppression.
  • Independent Speaker and Headphone Gain Settings.
  • Minimum External Components.
  • Thermal Over Load Protection.
  • Micro-power Shutdown.
  • Space Saving 16.
  • bump DSBGA Package.
  • Thermal Shutdown Protection.
  • Micro-power Shutdown.
  • I2C Control Interface.

📥 Download Datasheet

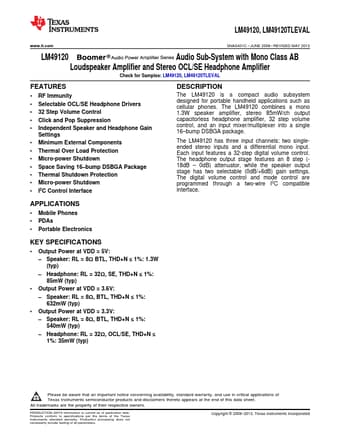

Datasheet preview – LM49120TLEVAL
