Part number: LM5111
Manufacturer: National Semiconductor
File Size: 205.51KB
Download: 📄 Datasheet

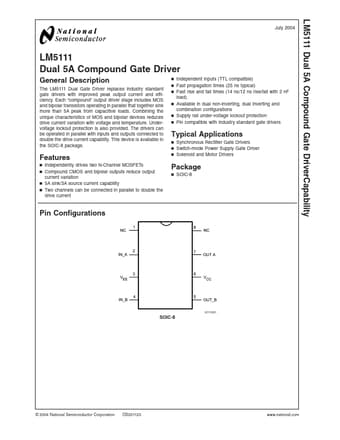

Description: Dual 5A Compound Gate Driver
n Independently drives two N-Channel MOSFETs n Compound CMOS and bipolar outputs reduce output current variation n 5A sink/3A source current capability n Two channels can.
n Synchronous Rectifier Gate Drivers n Switch-mode Power Supply Gate Driver n Solenoid and Motor Drivers
Features
n Ind.
The LM5111 Dual Gate Driver replaces industry standard gate drivers with improved peak output current and efficiency. Each “compound” output driver stage includes MOS and bipolar transistors operating in parallel that together sink more than 5A peak .
